Examples of color anodized finishes. Actual caliper model may vary. See ADDITIONAL INFORMATION tab for the caliper model featured in this particular kit.

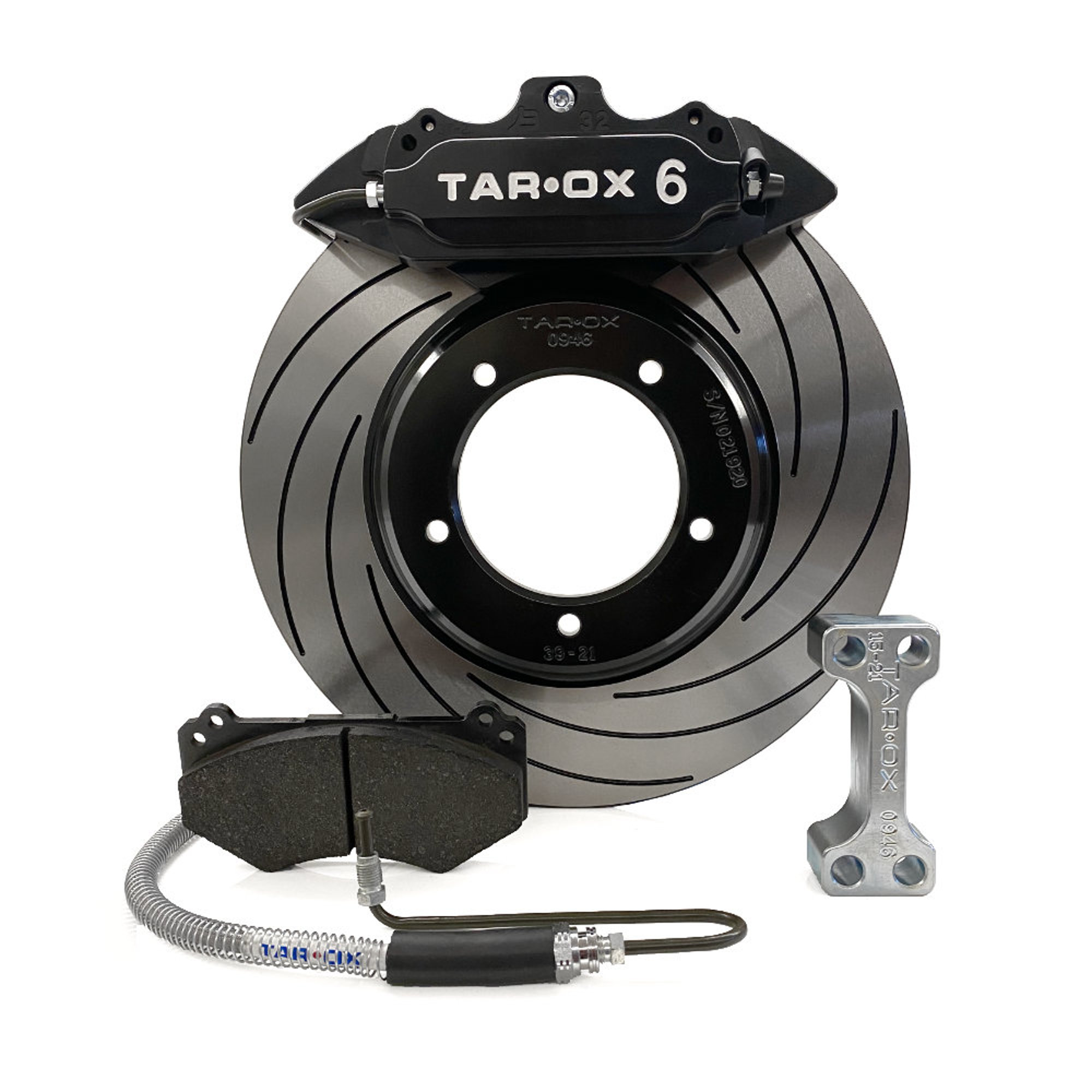

Rear TAROX Brake Kit – NISSAN 200 SX 1.8 Turbo (S13)
$2,761.00
Please see the 'Additional Information' tab in the description below for the kit specification.
This is a manufactured to order item
TAROX RoadRace Brake System
Race proven technology and materials applied to road cars for use on the street or the circuit.
Engineered to give improved performance and longevity without sacrificing pedal feel or drivability. Our RoadRace brake systems are equally at home at the track as they are on the street.
TAROX Roadrace brake systems are always tailored to the vehicle, offering owners improved braking across all aspects of driving whilst maintaining a firm usable pedal. TAROX RoadRace brake systems often offer a decrease in crucial un-sprung weight and, very often, due to the slim profile of the calipers, fit inside an OE wheel.
When developing a system we use state-of-the-art live brake ‘mapping’ ECU plug-ins and pedal pressure sensors. With this we can achieve an accurate measurement of a car’s standard performance. These procedures allow us to gather data to ensure real improvements to performance, pedal feel and durability.
TAROX tailors the size and number of pistons for every application individually, maximising the braking performance available from a vehicle’s master cylinder and brake servo without negatively affecting the feel of the brake pedal.
Calipers
This kit includes a pair of calipers CNC machined from the highest quality billet alloy and each unit is built and tested by hand at our Italian factory. The two piece design is held together with multiple high tensile steel bolts proven to provide a stiffer overall chassis then mono block calipers. This stiffness translates to a more responsive pedal even with increased levels of braking force. The anodized billet pistons feature internal seals reducing the risk of scorching, eliminating weathering and negating the need for routine servicing.
Calipers can be specified with our standard hard anodized black finish (450 wickers) or from a choice of anodised colors. We currently offer our calipers in black, red, blue, green and gold; all with a beautiful satin finish.
Rotors
The calipers are accompanied by a pair of bespoke handed two piece composite discs featuring rotors CNC machined from slices of the finest quality European steel billet. These rotors are heat treated, faced, then hand finished, creating a perfectly flat braking surface. The hat of the disc is machined from the same high quality alloy as the calipers and is hard anodized for protection from the elements. Rotors can be specified with the following facings:
- F2000 – long curved grooves
- Sport Japan – drilled and grooved
- C83 – short straight grooves
- D95 – drilled only (not recommended for road use)
- ZERO – plain braking surface
Some kits feature a single piece cast rotor to produce an economical solution. Check the 'ADDITIONAL INFORMATION' tab for the specification of this particular kit.
Examples of rotor facings. Actual rotor design may vary. See ADDITIONAL INFORMATION tab for the disc specification featured in this particular kit.
❝ These are not an off-the-shelf brake kit. These are tailored brake conversions. ❞
Pads
The kit is delivered with a set of pads pre-installed into the calipers to make fitting even easier. You may specify which of our pad compounds are supplied with your kit from the choices below:
Corsa: track compound suitable for fast road (default)
Enduro: track & race use – not suitable for road use
Further details about each compound can be found on our brake pad page.
Hoses
Supplied with the kit are a pair of braided brake hoses tailored specifically for your car and the TAROX calipers. A teflon coated inner hose is strengthened with a stainless steel braid and then wrapped in a PVC outer coating for protection from the elements.
…and finally
The kit is supplied with a pair of vehicle specific mounting brackets which are CNC machined from the same light weight billet alloy as the calipers and hats. The brackets are also hard anodized for protection and are accompanied by all of the necessary mounting hardware to allow easy fitment straight out of the box.
What's in the box:
- Hand assembled calipers machined from the highest quality billet alloy.
- Heat treated and CNC machined rotors with a choice of facings.
- Pre-installed brake pads.
- Stainless braided & coated brake hoses.
- Vehicle specific CNC machined alloy mounting brackets.
- Hardware kit.
- Printed installation guidelines.
| TAROX Code | |
|---|---|
| Quantity | 1 Kit |
| Axle | Rear |
| Vehicle Year | 1988>1991 |
| Variant | 1.8 Turbo (S13) |
| Caliper Model | B32-6 |
| Number of pistons | 6 |
| Rotor Dimensions | 330×26 |
| Rotor Configuration | Single Piece |
| Replacement Rotor Code | DK0710 |
| Replacement pad code | SP0002 |
| Minimum Wheel Size | 18" |
| Make | Model | Variant | Year |
|---|---|---|---|
| NISSAN | 200 SX | 1.8 Turbo (S13) | 1988 - 1991 |
